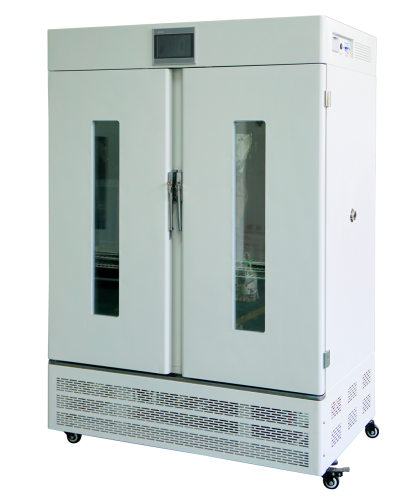

Constant temperature and humidity incubator 1000L
Equipped with a precise temperature and humidity control system
Can provide various environmental simulation conditions required for industrial research and biotechnology testing.
Supports mobile phone/computer data export + independent temperature alarm
- Volume: 60L–1500L available, Customization available
Product details
Provide internal humidification/external humidification
- Multiple capacities available from 60L to 1500L, with customization options available.
- The box body is integrally molded with polyurethane, which has excellent thermal insulation performance.
PID microcomputer program controls temperature, humidity, and light intensity.
- Up to 30 programs can be set, with each program allowing a time range of 1–9,999 minutes. Different segment parameters can be set to accommodate various experimental requirements.
LEADING TECHNOLOGY
The exterior of the box is made of high-quality cold-rolled steel plate with a powder-coated finish, while the interior features a brushed stainless steel liner. The shelves inside the box are adjustable in spacing.
Features a brand-name compressor and environmentally friendly, fluorine-free refrigerant (R134a) for high efficiency, low energy consumption, and energy conservation.
SMOOTH overall air duct uniform system, more precise temperature control
Independent temperature alarm system, dual temperature protection (±4°C and upper limit 70°C), automatically shuts down when the temperature exceeds the limit.
Reserved printer or RS485 interface, which can be connected to a printer and computer to record temperature change parameters. (Optional)
There is a 30 mm diameter test hole on the left side of the box for easy experimental operation and temperature measurement.
Self-diagnostic function, automatic monitoring of faults throughout the entire process, intuitive indication of fault codes.
Using a balanced control mode, the humidifier employs a thermal humidification method for more precise humidity control.
Built-in steam humidification system with large-capacity water tank for long-term operation with more stable temperature and humidity and less fluctuation.
Product Parameters
| Model | LRH-1000-HSE |
|---|---|
| Volume (L) | 1000L |
| Temperature Control Range (°C) | 0°C ~ 65°C |
| Temperature Resolution | 0.1 |
| Temperature Fluctuation | ±0.5°C |
| Temperature Uniformity | ±1°C |
| Humidity Control Range (%RH) | 25%RH ~ 95%RH |
| Humidity Resolution | 0.1 |
| Humidity Fluctuation | ±2%RH |
| Refrigerant | R134a |
| Power (W) | 688W |
| Power Supply | AC220V ±10%, 50Hz ±1Hz |
| Internal Dimensions (cm) | 120×67×114 |
| External Dimensions (cm) | 127×83×176 |
| Standard Shelves | 10 |
Note 1: Comes with a programmable LCD controller and an external electrothermal steam humidifier.
Note 2: Performance parameters were tested under no-load conditions: Ambient temperature 20°C, relative humidity 50%RH.
Note 3: When using humidity range 25%RH–45%RH, the temperature must be within 40°C ~ 65°C.
Product Advantages
Component
High-quality LCD screen controller
Genuine imported PT100 temperature sensor
Original imported humidity sensor
Genuine imported compressor
Proprietary water circulation system
Structure
- Outer Box: Made of high-quality powder-coated cold-rolled steel sheet.
- Insulation Layer: Constructed with high-pressure polyurethane integral foam for superior thermal insulation.
- Inner Wall & Shelf: Both made of SUS304 brushed stainless steel for durability and corrosion resistance.
- Door & Casters: Equipped with a key lock for secure access; includes 4 movable and lockable casters for mobility.
- Additional Features: Observation window made of insulated glass; includes a φ30mm verification hole.
Environmental control system
Airflow method: Forced vertical convection, SMOOTH overall air duct uniform system
Temperature control method: Electric heating system, compressor refrigeration system
Humidity control method: independently developed electric steam humidification
Water supply method: Internal circulation water supply system, continuous operation without frequent refilling
Energy conservation and environmental protection
- Energy Efficiency:The integrated cold insulation design of the box body ensures exceptionally low energy consumption.
- Eco-Friendly Materials:Uses R134a refrigerant and fluorine-free cyclopentane rigid polyurethane foam for environmentally friendly insulation.
- Quiet Operation:Equipped with silent components that produce low noise and minimal vibration.
Control System & Data Acquisition
Balanced control mode for more accurate temperature and humidity control
LCD display, can be set to 30 segments and 99 cycles, time setting 9999 hours or 9999 minutes
Protection System
Compressor overload protection
Independent studio over-temperature protection
Humidification system water shortage protection
APPLICATION INDUSTRY
Market coverage in 35 countries and regions
Chemical industry
Research university
Biological experiments
Food manufacturing
Pharmaceutical
Hospital medical care
Environmental
Electronics manufacturing
